Home » TGR Acrylic Dome Sun Tunnel Skylight with Rigid Tube - 10"
VELUX

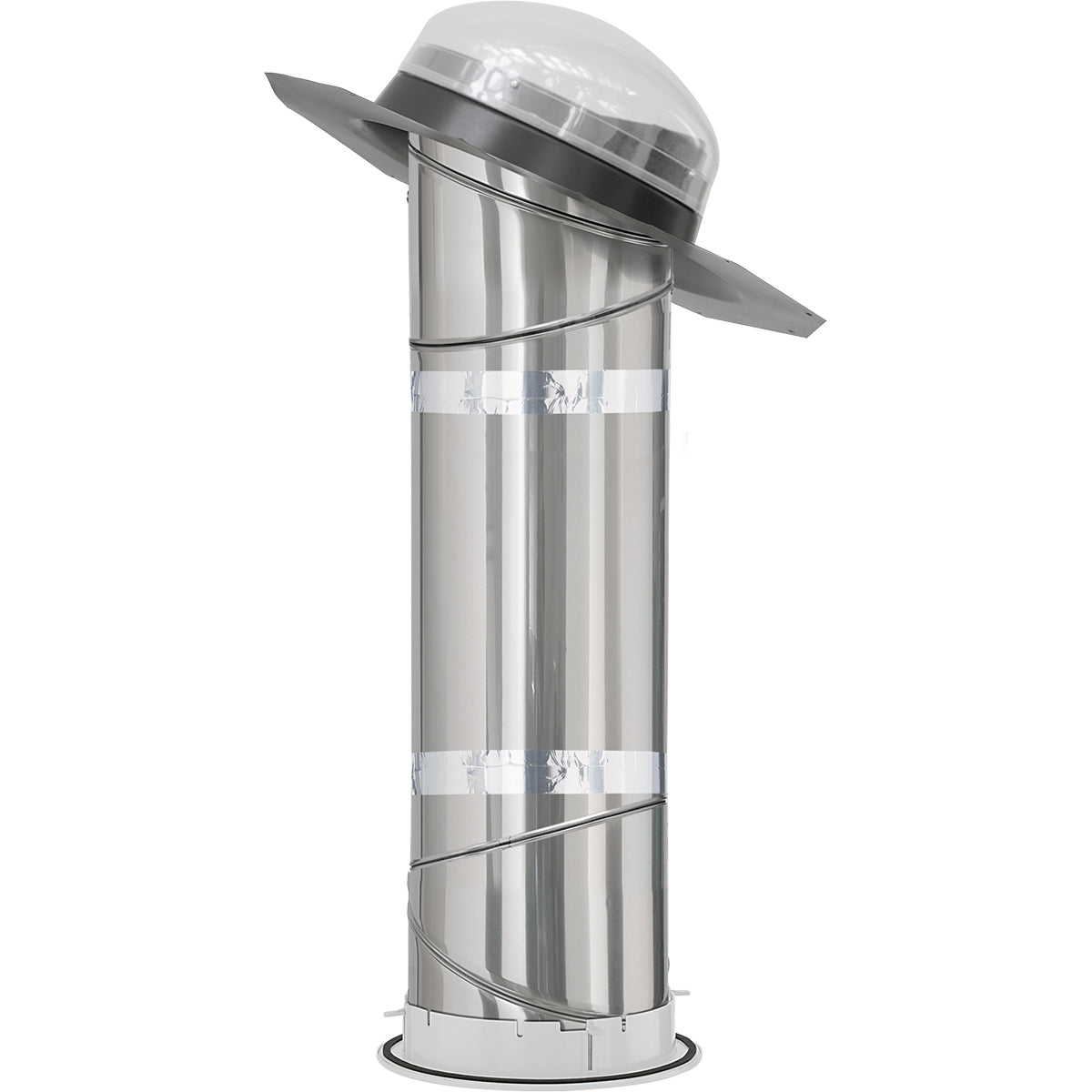

TGR Acrylic Dome Sun Tunnel Skylight with Rigid Tube - 10"

In stock
SKU: TGR 010 0000
Pickup available at Elk Grove Village, Illinois
$296.00

  • Description

    Acrylic Dome Sun Tunnel Skylight

    Before placing an order, please contact us by phone: at (630)-233-4514 or email us: at sales@attic-ladders.com to confirm the availability of the selected model.

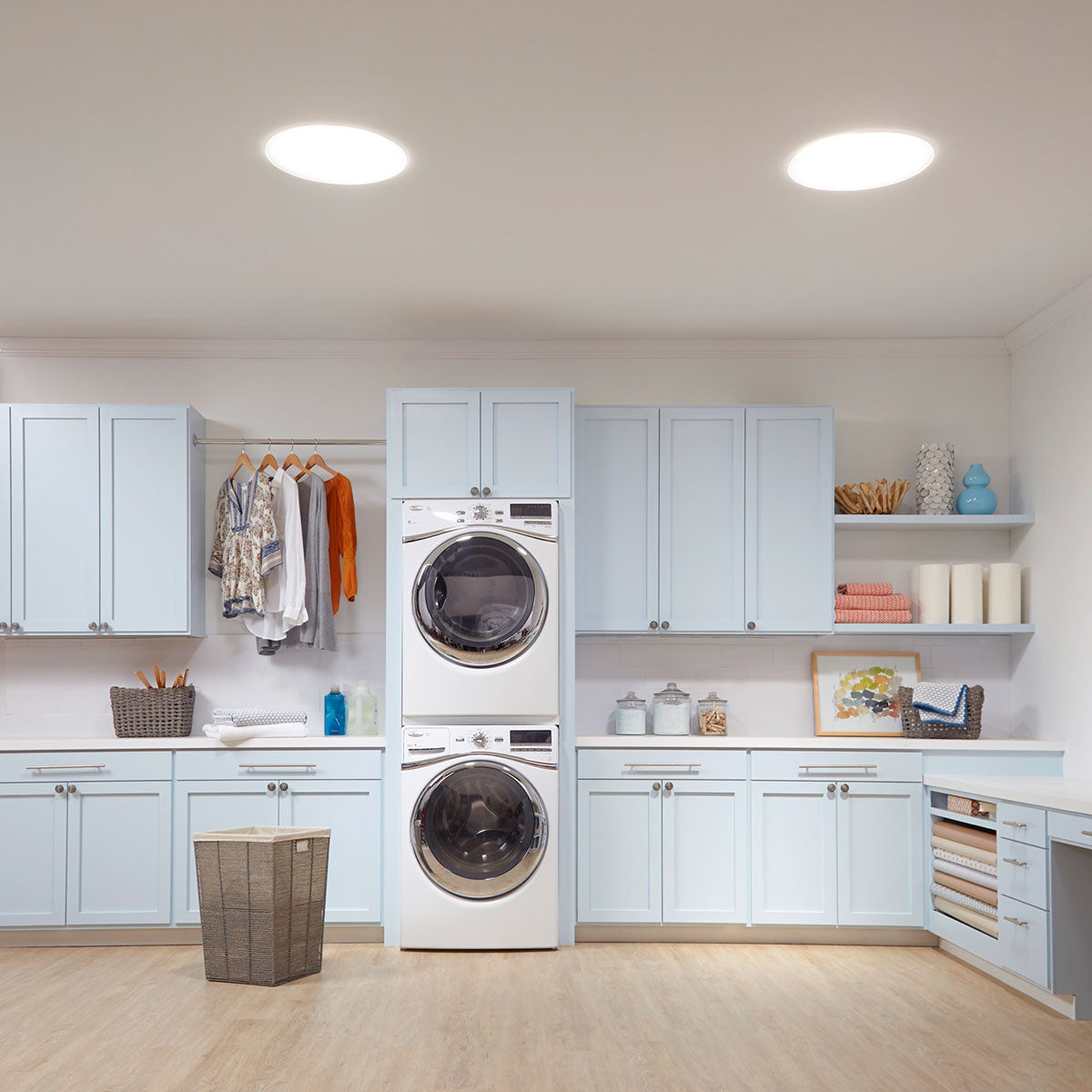

    VELUX Sun Tunnel® Skylight is a great solution to brighten space with natural light. Installation can end within an afternoon. All that makes a most inexpensive solution to bring light into dark rooms.

    Main features:

    - UV resistant dome is specially designed to capture and transfer pure natural light with no color change

    - Adjustable pitch adapter allows for a faster installation and more light

    - VELUX Flexi Loc tube system allows easy tube assembly

    - Rigid tunnel system is recommended for straight, unobstructed applications.

    Technical Specification:

    Tunnel length with kit 48”
    Maximum recommended installation length 20’
    Product Weight 19.59 LBS
    Rough Opening-Roof Deck 14 1/2" x 14 1/2" (368 mm x 368 mm)
    Outside Flashing 24 3/4" x 24 3/4" (629 mm x 629 mm)
    Roof Pitch Range 14° - 60°
    Air Leakage 0.2 L/S/M2 (0.04 CFM/FT2)
